Door safe Euro chassis
Door safe
Fiat Ducato, Citroen Jumper and Peugeot Boxer
Suitable for driver and passenger door

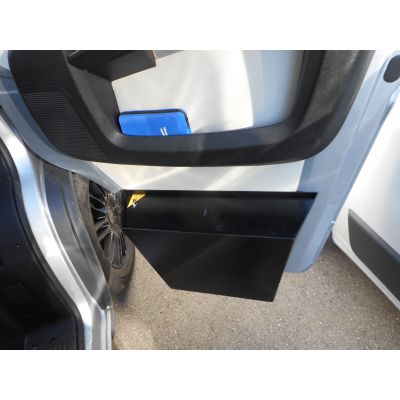

This door safe can be installed on the driver's door as well as on the front passenger door of the original Fiat driver's cabin doors from the year of construction 2006 (type X250 and X290). The original attachment points of the map pocket located there are used for this. The safe is big enough to stow a 13-inch notebook in it.
The safe is locked with a double-bit security lock with 7 tumblers.
| model | Article no. | External dimensions WxHxD (mm) | Inside dimensions WxD (mm) | Door clearance dimensions | weight | Hole in the rear wall | Drilling ground | particularities |
|---|---|---|---|---|---|---|---|---|
| Door safe | 5851031 | 550x140x330 | 119 x 265 * | 495 x 105 430 x105 | 7.0 kg | 4th | 0 | suitable for 13-Toll-Tablet |
* Inside dimensions:
Width of the vehicle door at the top at the rear = 500 mm
Width of the vehicle door at the top at the front = 400 mm
Width of the vehicle door at the bottom at the rear = 360 mm
Width of the vehicle door at the bottom at the front = 320 mm
* The depth of the safes is always opposite the door.
Product description
Thanks to its innovative design, the Mobil-Safe can be installed in any corner of your vehicle either lying down, standing, sideways or hanging. Since the door can be removed after unlocking, you do not need any pivoting range. 2-3 cm is enough to remove the door.
With the 5 standard models, the Mobil-Safe is supplied with 4 holes in the base and 2 holes in the rear wall. The Mobil-Safe is made of 2.5 / 3 mm SM steel and is coated with an impact- and scratch-resistant powder. The door is made of 5 mm SM steel and has a double-bit security lock. The lock is a German branded product with 7 tumblers. A manganese hardened lock plate prevents drilling. The mobile safe is optimally secured against being pried open by the 2 cm internal door. In addition, the door is secured with a rear grip bracket. Fastening material for installing the safes is supplied free of charge (except for Dekalin).
Installation of the mobile safe
When installing the mobile safe in a mobile home, the safe is firmly screwed to the vehicle floor. The modern construction of the sandwich floors is very stable, so that breaking out of the Mobil-Safe is impossible. It can also be attached using blind rivet nuts. Alternatively, the safe can be glued into cupboards or floor storage compartments with Dekalin adhesive. Glue amount 100 ml.
